AI Agent

The AI Agent turns natural language into ClickHouse insights. Ask a question and the agent plans a series of read-only tool calls — querying system tables, inspecting schema, comparing hosts, spotting anomalies — then streams back a concise answer with optional inline charts.

The agent connects through the same ClickHouse host and user as the rest of the dashboard. Its visibility is bounded by the grants on that user. By default it only runs read-only queries. Keep control tools off and use a restricted ClickHouse user for safe exposure.

What it can do

A small set of tools delivers this: dedicated primitives for the common reads, and the query tool plus an expert skill recipe for everything else. See Capabilities for the full list.

Skills — when a question needs domain depth, the agent loads a bundled expert guide (a skill) with copy-pasteable SQL recipes before answering. Eighteen skills cover data analysis, anomaly detection, query tuning, schema & data-type design, hardware tuning, version upgrades, concept explanations, incident response, plan-and-verify, and the core domains (replication, cluster, storage, migration, security, best practices, troubleshooting, system tables). Available skills: GET /api/v1/agent/skills.

Plan and verify — for multi-step tasks (incident triage, investigations, find-and-fix) the agent authors a live checklist with update_plan, keeps one step in progress, and verifies each result before stating it. Simple one-step questions skip the plan. See Capabilities for details.

Quick start

Set at minimum one environment variable:

LLM_API_KEY=your-provider-key

Then open /agents in the dashboard, pick a host, and start asking questions. The agent uses OpenRouter by default (https://openrouter.ai/api/v1) with the free model tier.

For full configuration options see Configuration.

Agent Settings page

/agents/settings is the full-page home for everything agent-related, reached from the sidebar under AI Agent → Agent Settings (or the "Open full agent settings" link in the chat page's settings panel). It groups four tabs:

• Provider & Models — a provider → model hierarchy: each configured provider (AnyRouter, OpenRouter, NVIDIA NIM) is grouped with its models, showing configured/not-configured status (GET /api/v1/agents/config-check), context size, max output tokens and per-token pricing where available, and free/default/custom badges. Click a model to make it the active model for new conversations — the same picker used on the chat page and its sidebar. Provider/model access and API keys are still set via environment variables at deploy time (see Configuration); this tab requires being signed in on deployments where the agent feature needs authentication (it shows a sign-in prompt rather than an error for an anonymous visitor).
• System prompt — read-only view of the instructions sent to the model on every request; there is no per-user override yet.
• Skills — the full skill library with search and per-skill toggles.
• MCP servers — split into the always-on built-in chmonitor MCP server (self-access to this cluster; links to the full MCP server guide) and the external MCP servers you register yourself (see Persistent MCP server registry below). This replaces the old standalone /mcp-servers page, which now redirects to /agents/settings?tab=mcp.

Child pages

Conversation history backends

Agent chat history is persisted by a server-side ConversationStore chosen at deploy time by environment variables. Four backends are available:

Selection priority when persistence is enabled: AgentState (if AGENTSTATE_API_KEY) → D1 (Cloudflare binding) → Postgres (DATABASE_URL) → Memory (last-resort, non-persistent). With the feature flag off, history stays in the Browser.

Server persistence requires CHM_FEATURE_CONVERSATION_DB=true and an authenticated user — configure Clerk (CHM_AUTH_PROVIDER=clerk + CLERK_SECRET_KEY) so history can be scoped per user. Unauthenticated sessions always fall back to browser history. See Authentication.

AgentState

AgentState is a conversation-history database-as-a-service for AI agents. Use it when you want managed (or self-hosted) persistence that survives browser clears and is shared across devices, plus optional AI enrichment — auto-generated conversation titles and follow-up question suggestions — and per-project analytics. It is self-hostable as a single Cloudflare Worker (see duyet/agentstate) and ships an npm SDK (@agentstate/sdk).

Per-user isolation is built in: each thread is namespaced by AgentState external_id as <userId>:<conversationId> and tagged user:<userId>, so one project key safely holds every user's history without cross-talk.

Environment variables (all server-side):

Still requires CHM_FEATURE_CONVERSATION_DB=true and a Clerk auth provider (CHM_AUTH_PROVIDER=clerk + CLERK_SECRET_KEY).

Setup (hosted)

1. Sign in at agentstate.app and create a project.
2. Create an API key — it is prefixed as_live_ and shown once, so copy it immediately.
3. Set it server-side:

CHM_FEATURE_CONVERSATION_DB=true
AGENTSTATE_API_KEY=as_live_xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
# Optional: turn on auto-titles + follow-up suggestions
AGENTSTATE_AI_ENRICH=true

Setup (self-host)

Run your own AgentState Worker per duyet/agentstate, then point the dashboard at it:

CHM_FEATURE_CONVERSATION_DB=true
AGENTSTATE_API_KEY=as_live_your_self_hosted_key
AGENTSTATE_BASE_URL=https://your-agentstate-host/api

Local dev

Against a locally running AgentState instance, use the seed test key:

CHM_FEATURE_CONVERSATION_DB=true
AGENTSTATE_BASE_URL=http://localhost:8787
AGENTSTATE_API_KEY=as_live_TEST_KEY_FOR_LOCAL_DEV_ONLY_1234567890ab

Verify it's active

• Settings sidebar — the agent settings sidebar shows a read-only Conversation History section naming the active backend (e.g. AgentState).
• Endpoint — GET /api/v1/conversations/backend reports the active backend and whether enrichment is available:

curl https://your-host/api/v1/conversations/backend
# => { "backend": "agentstate", "supportsAiEnrichment": true }

AI enrichment

When AgentState is active and AGENTSTATE_AI_ENRICH=true:

• Auto-title — new conversations get a concise generated title instead of a placeholder.
• Follow-ups — the chat suggests follow-up questions after a turn. The dashboard reads them from GET /api/v1/conversations/$id/follow-ups.

With enrichment off, conversations persist normally but titles and follow-up suggestions are not generated.

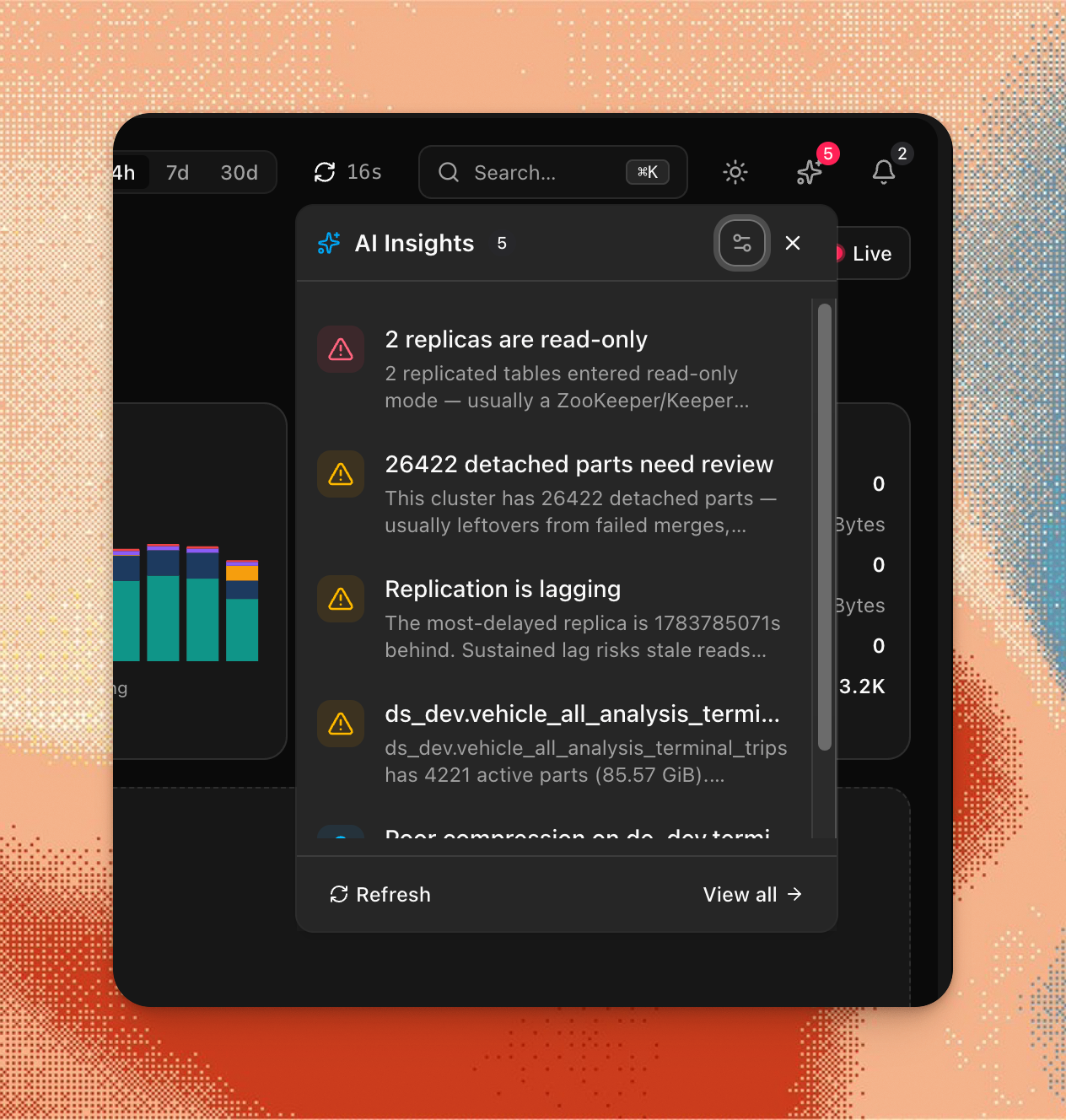

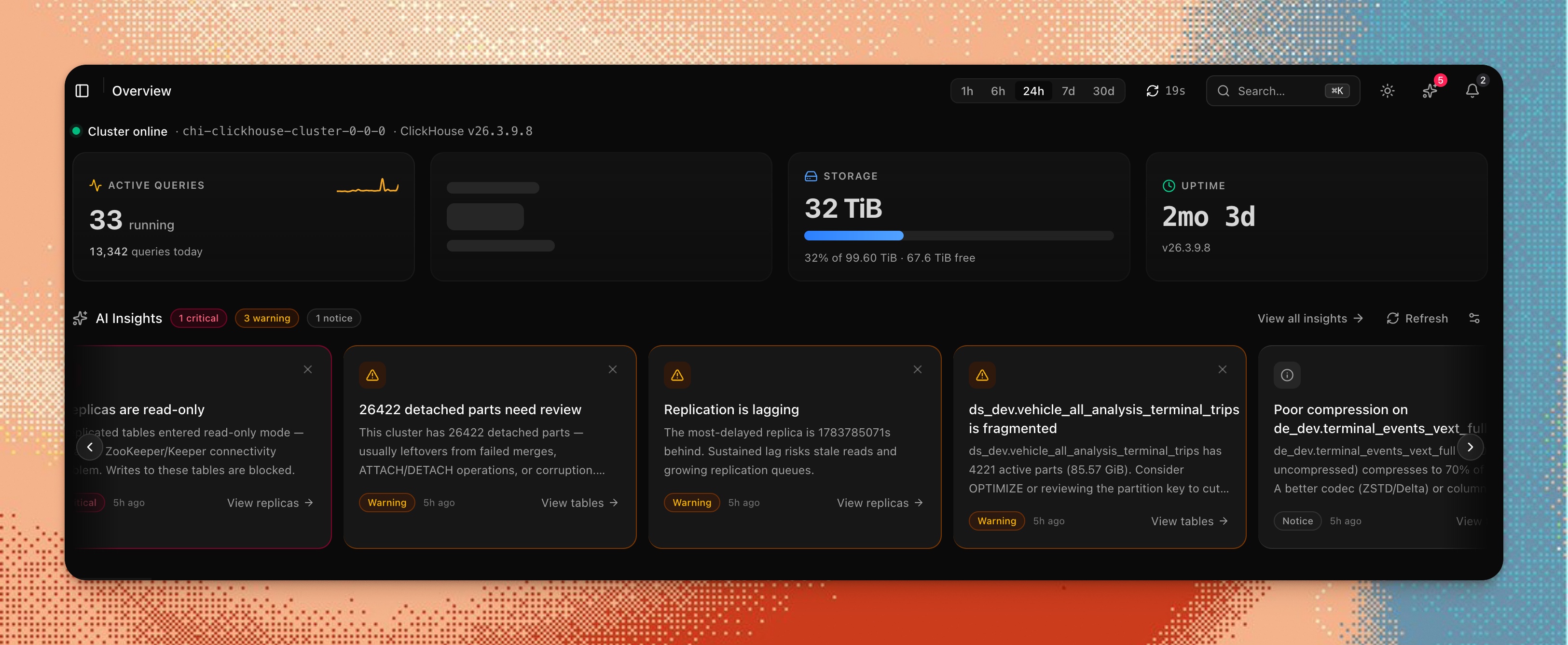

AI Insights persistence

Separate from chat history, the AI Insights panel on /overview persists the short observations it generates through its own pluggable store, mirroring the conversation backends above. It is additive opt-in via one env var and defaults to ClickHouse, so existing deployments are unaffected.

INSIGHTS_STORE_BACKEND=auto   # auto | clickhouse | d1 | postgres | agentstate | memory

The D1, Postgres, and AgentState backends reuse the same env / bindings as the conversation store. auto resolves to ClickHouse and never silently follows other env; if an explicitly selected backend is missing its prerequisite, the engine logs a warning and falls back to ClickHouse. GET /api/v1/insights/backend reports the active backend ({ "backend": "d1" }), and the overview panel shows a read-only "Stored in <backend>" footer.

HTTP API

curl -X POST https://your-host/api/v1/agent \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $AGENT_API_TOKEN" \
  -d '{"message": "Which queries are running right now?", "hostId": 0}'

hostId is a zero-based numeric index; defaults to 0.

MCP Server

The dashboard exposes an MCP (Model Context Protocol) endpoint at /api/mcp. The same implementation runs in the standalone Cloudflare MCP Worker (apps/mcp). All tools are read-only by design — write and DDL statements are rejected.

Agent settings sidebar

The MCP Servers section of the agent settings sidebar shows the built-in clickhouse-monitor server with its live connection status, tool count, resource count, and version — fetched from GET /api/v1/mcp/info. Click a server row to see the full tool and resource list. The built-in server is always enabled and cannot be toggled off.

Custom MCP servers

You can connect additional MCP servers from the agent settings sidebar. Click Connect new server, enter a name and endpoint URL, and save. Enabled custom servers are connected at the start of each agent request — their tools become available to the model for that conversation.

How tools are named. Each tool from a custom server is prefixed mcp_<server-name>_<tool-name> (server name is lowercased and non-alphanumeric characters replaced with _, truncated to 20 chars). This keeps custom tools distinct from built-in ones.

Requirements and limits:

• Endpoint URL must use https:. http: is allowed only for localhost / 127.0.0.1 / [::1] (local development).
• Private IP ranges are blocked (10.x, 172.16–31.x, 192.168.x, 127.x, 169.254.x). This includes the AWS/GCP instance metadata endpoint (169.254.169.254).
• At most 5 custom servers are connected per request. Extras are skipped.
• Each server has an 8-second connect timeout. A failing server does not affect other servers or the built-in tools.

The panel probes each enabled server on load (POST /api/v1/mcp/probe) to show live connection status and tool count. Click a row to see the full tool list.

Persistent MCP server registry (per-user)

The sidebar panel above stores servers in the browser (localStorage). For servers that persist server-side per user — with authentication and a template library — use the MCP Servers tab on the Agent Settings page (/agents/settings?tab=mcp, in the sidebar under AI Agent → Agent Settings). The old standalone /mcp-servers route redirects here.

• Register a server with a name, endpoint URL, transport (http streamable or sse), and optional auth (a bearer token or a custom header). Saving first runs a Test connection probe and stores the server only if it connects — so the tool count shown reflects what the server actually advertised.
• Template library — one-click presets prefill the form for Slack, GitHub, and Datadog (endpoint + expected auth kind); you supply your own token.
• Enable / disable / remove each server. Enabled registrations are loaded for that user at the start of every conversation, merged with any request-body (sidebar) servers and de-duplicated by endpoint.
• Live connection status — each row re-probes the server (with its stored, decrypted auth) and shows connected / unreachable, not just the last manual "Test connection" timestamp.
• Storage — registrations live in Cloudflare D1 (mcp_server_registrations), strictly scoped to the signed-in user; one user's servers are never loaded for another. Auth secrets are encrypted at rest (AES-256-GCM) and never returned by the API.
• SSRF-guarded transport — the same private-range / DNS-rebind guard as above applies, and the actual outbound connection is pinned behind the host-validated fetch (not a raw fetch), so the validated address is the one connected to.
• Availability — this page requires the hosted (cloud) deployment (a D1 binding + a signed-in account). Self-hosted deployments without D1 use the sidebar panel instead; the page shows an explanatory empty state.
• Config-as-code (server-configured MCP servers) and OAuth are not implemented yet — every external server today is registered through this UI with a bearer token or custom header. There's no env-var-driven static server list, and no OAuth redirect/token-refresh flow; both are documented follow-ups (bearer/header auth already covers most real-world MCP servers, e.g. Firecrawl).

API: GET/POST/PATCH/DELETE /api/v1/mcp/servers (all user-scoped); POST /api/v1/mcp/probe for test-before-save; POST /api/v1/mcp/servers/$id/probe for the live status of an already-registered server.

MCP tools

The MCP server exposes a smaller, read-only-only subset of tools for external MCP clients — not the full agent toolset. For the complete tool list the in-app AI Agent uses (schema, query analysis, health, storage, replication, merges, capacity planning, the query advisor, aggregation/MV advisor, planning, skills, visualization, insights, and dashboard suggestions — 26 tools total, plus 3 env-gated control tools), see Capabilities.

Read-only enforcement

The query tool — the only tool that accepts arbitrary SQL — validates every statement before execution via validateSqlQuery (@chm/sql-builder). It throws on any write or DDL statement and on dangerous ClickHouse commands. Allowed prefixes: SELECT, WITH (CTE), DESCRIBE, EXPLAIN. Rejected: INSERT, ALTER, DROP, CREATE, TRUNCATE, RENAME, DELETE, UPDATE, SYSTEM RELOAD/FLUSH/KILL/SHUTDOWN, GRANT, REVOKE, ATTACH, DETACH, KILL, SET, multi-statement payloads (; chaining), and dangerous table functions (remote(), url(), s3(), etc.).

All other MCP tools run fixed SELECT queries and pass readonly: '1' to the ClickHouse connection — they cannot issue writes regardless of the validator.

Security

Least-privilege ClickHouse user for the agent/MCP

The risk. The agent's query tool and the MCP server's query tool both accept arbitrary read-only SQL (SELECT / WITH / DESCRIBE / EXPLAIN) and run it with whatever CLICKHOUSE_USER is configured for the connection — see Read-only enforcement. The validator gates the statement type, not the tables it touches, so a query like SELECT * FROM system.query_log or SELECT * FROM system.users passes validation as long as the configured user has grants on those tables. Two system tables deserve special attention:

• system.query_log — stores the full text of every query the server has run, including queries issued by other tools, users, or services. If any of those queries ever embedded a connection string, password, or token in a SQL comment or string literal, it is sitting in plaintext in this table and is readable through the agent.
• system.users — exposes configured usernames, auth types, and (on some ClickHouse versions/configurations) additional auth metadata.

Because the agent is LLM-driven and, by default (CHM_FEATURE_AGENT_ACCESS=public), reachable without authentication on self-hosted deployments, anyone who can prompt it inherits read access to everything the configured ClickHouse user can see — including secrets that leaked into query text.

The recommendation. Create a dedicated, restricted, read-only ClickHouse user for the dashboard/agent/MCP connection instead of reusing an admin or broad-access account — for both self-hosted deployments and any custom/BYO ClickHouse connection configured in cloud mode:

CREATE USER chmonitor_agent IDENTIFIED WITH sha256_password BY 'CHANGE_ME'
    SETTINGS readonly = 1;

-- Grant only the system tables the dashboard needs for monitoring.
GRANT SELECT ON system.processes TO chmonitor_agent;
GRANT SELECT ON system.metrics TO chmonitor_agent;
GRANT SELECT ON system.parts TO chmonitor_agent;
GRANT SELECT ON system.replicas TO chmonitor_agent;
GRANT SELECT ON system.merges TO chmonitor_agent;
-- ... plus any other system.* tables your dashboard pages use.

-- Explicitly withhold the sensitive ones unless you've reviewed what's
-- in your query text / user list and accept the risk:
REVOKE SELECT ON system.query_log FROM chmonitor_agent;
REVOKE SELECT ON system.query_thread_log FROM chmonitor_agent;
REVOKE SELECT ON system.users FROM chmonitor_agent;
REVOKE SELECT ON system.session_log FROM chmonitor_agent;

Adjust the exact grant list to your environment — the key principle is least privilege, readonly = 1, and treating system.query_log / system.users as sensitive by default.

Weighing the trade-off. Several dashboard query-monitoring pages — Slow Queries, Expensive Queries, the query-history panel, and the Query Detail view — legitimately read system.query_log to power their own charts and tables. If your monitoring use case needs that access, weigh it against the agent's ability to read the same table through the same connection. Two options:

1. Split the connection — the dashboard, agent, and MCP server currently share one CLICKHOUSE_USER/CLICKHOUSE_HOST connection, so achieving a split means running a second chmonitor deployment (or a separate host entry) configured with its own, more restricted ClickHouse user — one that revokes system.query_log / system.users — dedicated to agent/MCP traffic, while the primary connection keeps broader access for the dashboard's own charts.
2. Accept the risk — keep one shared user, but understand that anyone who can prompt the agent (or call /api/mcp) inherits the same read access as the dashboard's own query-monitoring pages, and gate access accordingly (CHM_FEATURE_AGENT_ACCESS=authenticated, MCP auth via CHM_API_KEY_SECRET / Clerk — see MCP Server).
